SDR-4000SL Digital Systems Specifications
| Sample Rate: | 44.1KHz |
| D/A Conversion: | Four custom 24 bit DACs in double balanced configuration |
| Digital Filter: | 8x oversampling, 56 bit math 64 bit accumulator HDCD |
| Analog Filter: | Passive type, fully discrete . Linear phase to 28KHz |
| Frequency Response: | DC to 22KHz +/- .3 dB |
| DAC Step Resolution: | Better than 120dB |
| Digital Noise Output: | 100 uV peak to peak or less |
| Transient Overshoot: | 8% or less |
| Transient Settling Time | 100uS or less @ 1% |
| Intrinsic Jitter: | 1 picosecond rms or better, 3-4 picoseconds peak |
SDR-4000SL Analog Systems Specifications

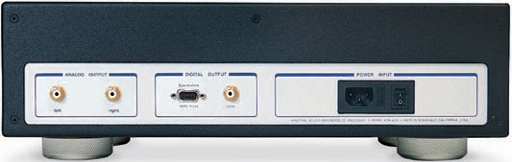

| Outputs: | RCA single-ended |
| Output Impedance: | 100 Ohms |
| Frequency Response: | DC to 1.2 Mhz -3 dB |
| Harmonic Distortion: | Less than .001 |
| Intermodulation(SMPTE): | Less than .001 |
| Nominal Output: | .75 Volt rms |
| Output Voltage Swing: | 2.5 Volts rms maximum |
| Signal to Noise Ratio: | Greater than 120 dB |
| Channel Separation: | Better than 115 dB |
| Slew Rate: | 250 V/us |
SDR-4000SL Power Requirements
| Voltage: | Factory set 120, 220, 240 VAC @ 47.5 Hz to 440 Hz |
| Continuous Dissipation: | 65 Watts |
SDR-4000SL CD Transport Specifications
| Controls: | |
| Load Selector | |
| Play Selector | |
| Stop Selector | |
| Pause Selector | |
| Operate/Standby Selector | |
| Time Display Function Selector | |
| Display Brightness Selector | |
| Scan Backward Selector | |
| Scan Forward Selector | |
| Previous Track Selector | |
| Next Track Selector | |
| Spectralink Digital Interface (optional) | |
| Main Power Switch | |
| AC Line Fuse | |
| IEC AC Power Connector | |
| Disc Loader: | Slot load, custom designed, MIL spec. |
| Pickup: | Objective lens drive type with 3-beam laser pickup linear drive servo |
| Wow & Flutter: | Below measureable limit (accuracy of crystal) |
SDR-4000SL Mechanical Specifications
| Dimensions: | 48cm (19") W, 10.5cm (4.25")H, 40cm (16")D |
| Weight: | 20.9 KG (46 lbs.) net |
